Insulation Coating

Insulation Coating

Insulation Coating is a 100% Solid Three Component Pigmented Insulation Coating loaded with a Special Insulated Additive. Insulation Coating is a Self Levelling, Solvent Free, High Built, High Breakdown Voltage Protection Coating. It also provides Monolithic, High Glossy/Matt, Smooth, Non-Porous, Hygienic, Chemical Resistance, and Easy to Clean and Maintain floor and can withstand Industrial Traffic. Insulation Coating forms a Protective finish and provides Resistance to Heat Flow. This Coating is applied over Base Coat of Epoxy Primer Floor. This Coating has a Thickness of 500 microns to 2 mm.

Application

Insulation epoxy coatings are specialized solutions designed to provide robust electrical insulation and environmental protection for various components in electrical systems. They offer high dielectric strength, corrosion resistance, and thermal stability.

Features & Benefits

High Dielectric Strength

High Breakdown Voltage

No Moisture and Oil Content.

Seamless and Hygienic Finish.

Superior Insulation Properties and not affected by Ageing.

Provide Tough, Wear and Weather Resistant.

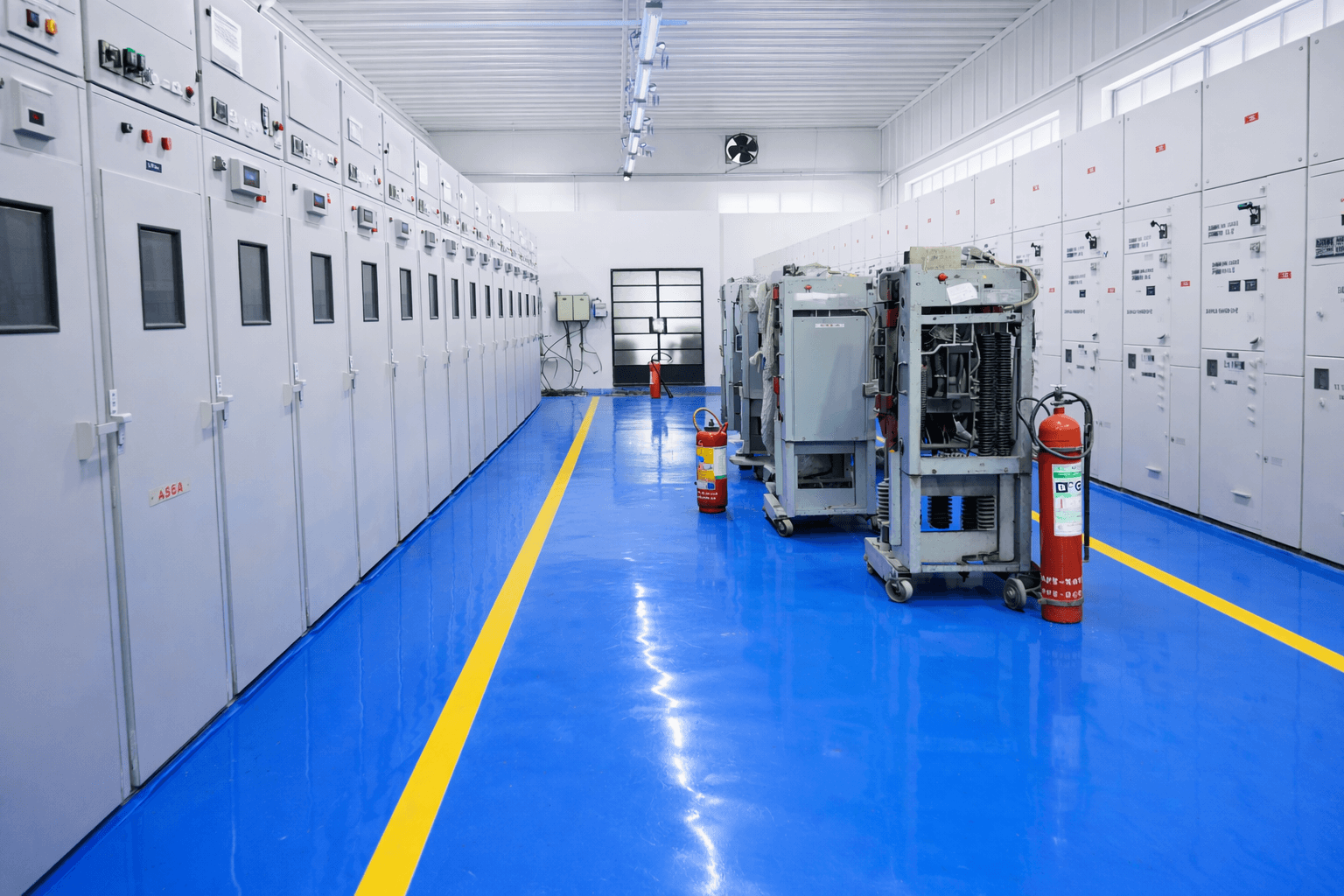

Provides Protection against Electrical Leakages and Resultant Human Risk in High Voltage Sub-Station.

Solvent Free with a High Level of Abrasion and Chemical Resistance, Ultraviolet Rays.

Performance Properties

Appearance Client Requirement
Cure Method Self-Curing
Curing Time, @ 30 °C
• Foot Traffic, hours
• Vehicular Traffic, hours
• Full Cure, days

8-10
24
7
Pot Life @25 °C, Minutes 25-30
Shrinkage Nil
Theoretical Coverage@1mm, Kg/Sq.Mtr. 1.5
Mixed Density, Kg/L 1.20 ± 0.05
Application Temperature, °C 25-30
Insulation Range, Ohm Per Square
(Surface Resistivity Meter)
10¹²
Mixing Ratio (By Weight) 3(R):1(H):5(Agg)

Note: Coverage of the product depend upon nature of the Floor Surface and Thickness can be Increased by Screeding for levelling purpose as per surface condition.
