Anti Tracking Coating

Anti Tracking Coating is a Two Component air drying “Class H” Epoxy Insulation Coating. This Coating gives Tough, Glossy Epoxy Coating, Excellent Adhesion and High Dielectric Strength. This is specially designed for Protection and Sealing of Insulated Surface against Deterioration of Exposure to Oil, Moisture, Acid and Alkaline Fumes. Anti Tracking Coating Can be applied by Paint Brush/Cotton Roller/Spray applied on Metal Surface as Insulation Coating giving Thickness up to 150-200 Micron. This product is also available in Polyurethane (PU) System. This is mainly useful in Glue Joints and Connector in Railways.

This product gives a high-performance, epoxy-based industrial screed designed to deliver exceptional chemical resistance, high abrasion strength, and long-term durability in demanding service conditions. When applied over a properly prepared epoxy-primed surface, it forms a dense, impact-resistant, and wear-resistant flooring layer.

Application

Use on Insulators, Frayed Insulation, Pitted Motor Windings.
Bakelite Sheets, Field Coils, Taped Coils.
“In-Situ” IR Value Up gradation of Insulating Components.

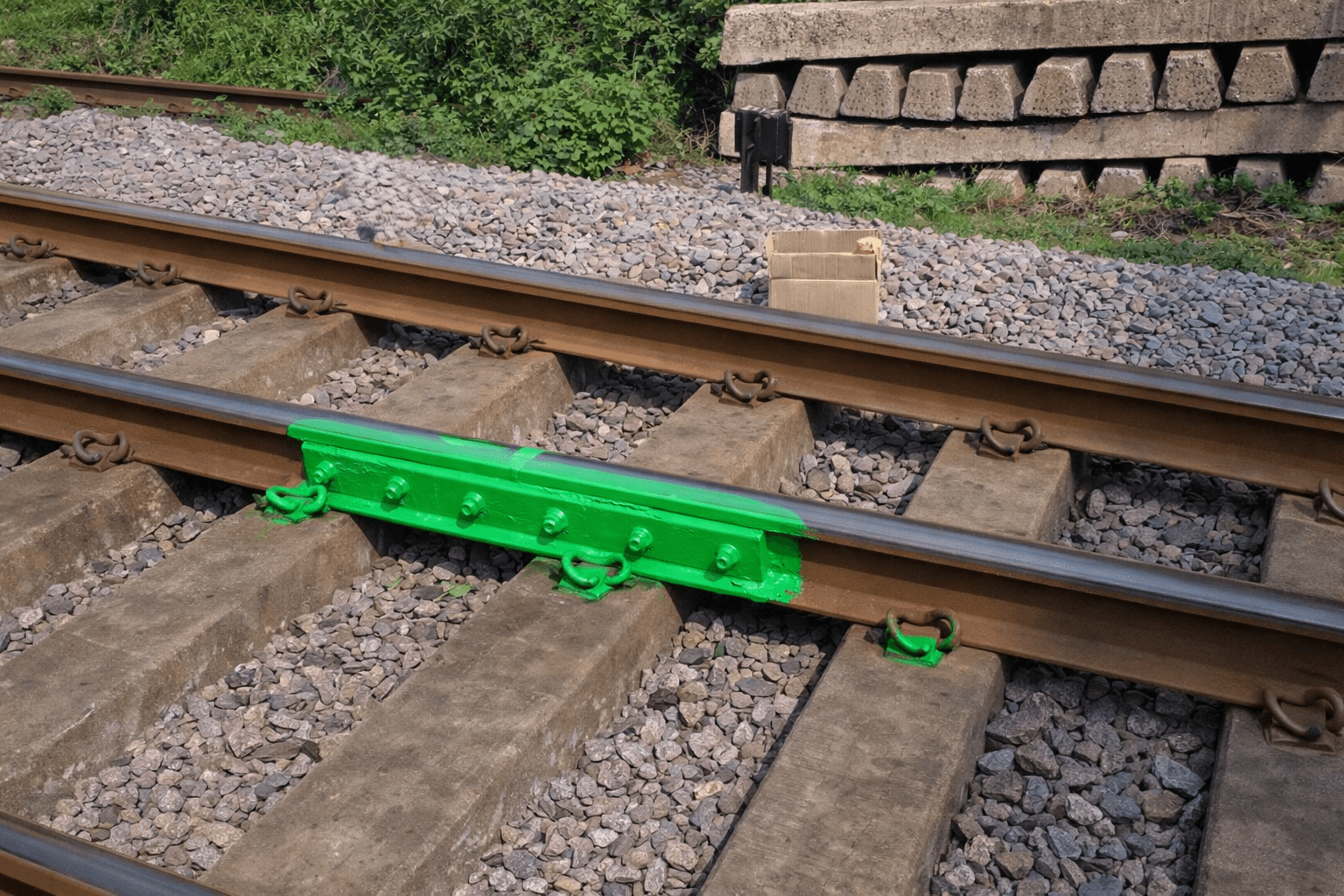

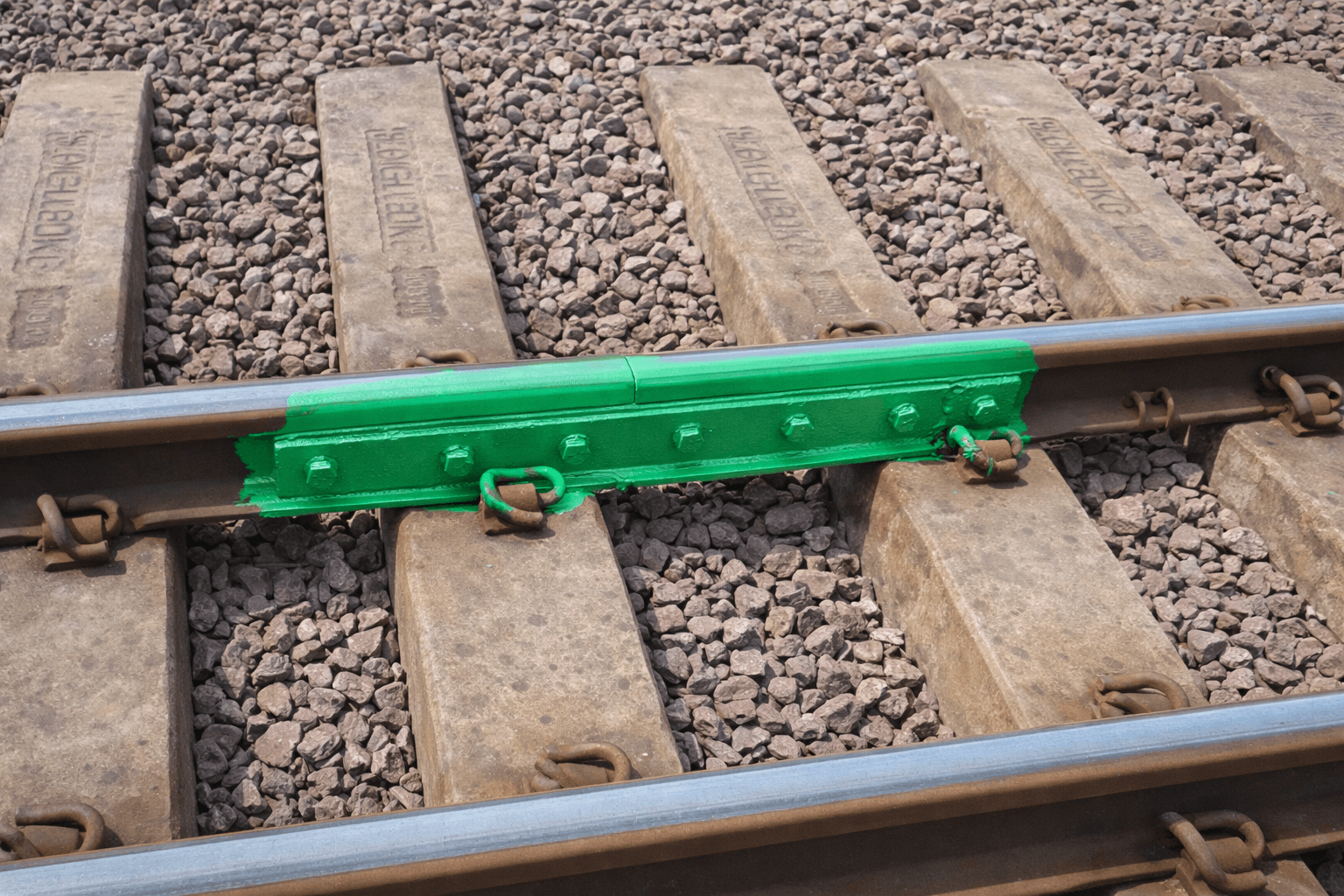

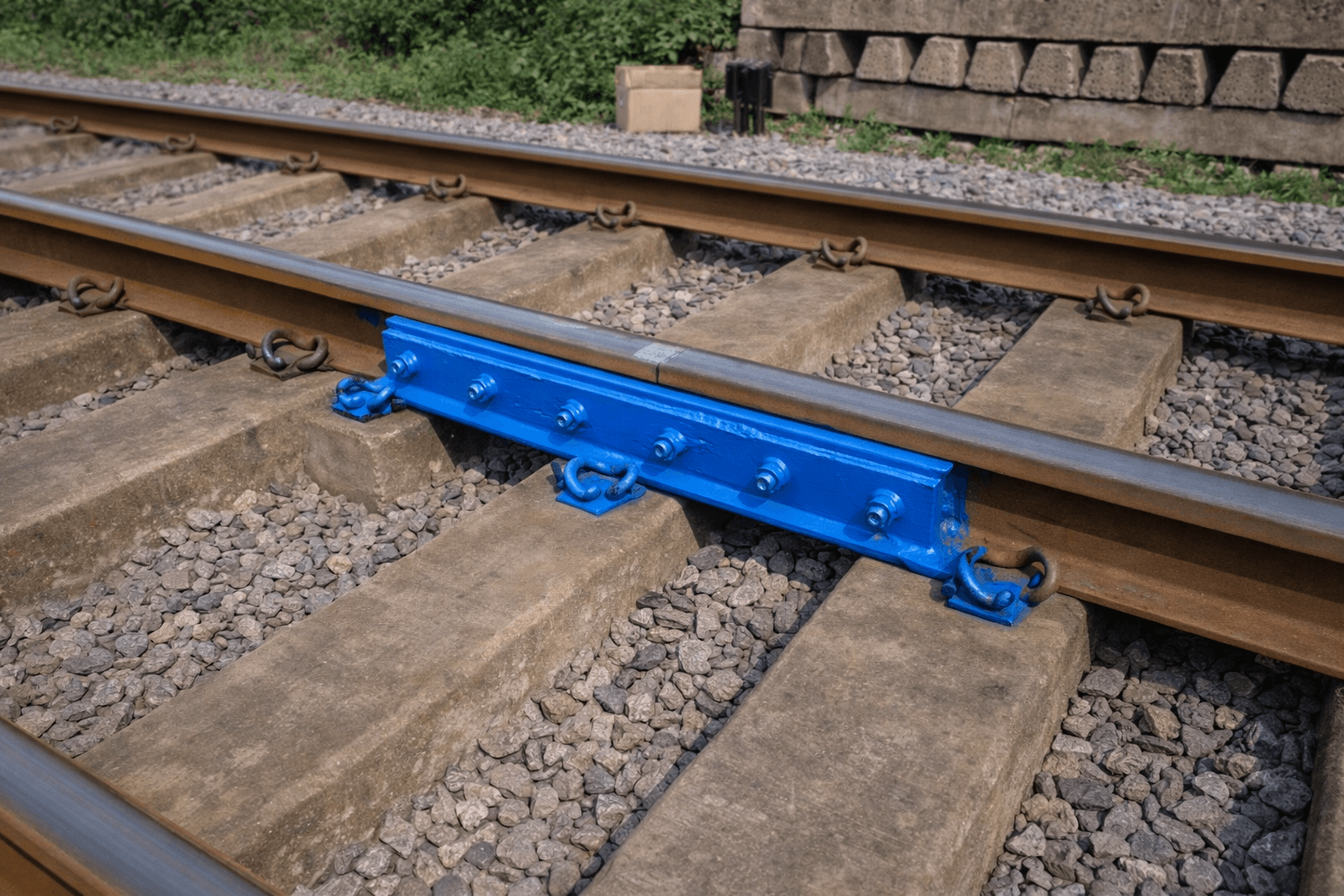

Glue Joints and Connector in Railway Department.
Production Machinery, Armature and Bus Bars.

Steel Structures and Motor case Interiors.
Tank Outside and Supporting Structure Coating.
Transformers Insulator.
External Pipe Lines and Metal Bridges.
Chemical Processing Plants.

Features & Benefits

Excellent Adhesion And High Arc Resistance

Adheres Strongly And Forms A Tough Glossy Coating

High Dielectric Strength

Weather And Chemical Resistance

Excellent Adhesion On Steel

Durable, Superior Weathering Resistance

Excellent Sag And Shrink Resistance

Protection And Sealing Of Insulated Surface Against Deterioration Exposure To Oil, Moisture And Corrosion, Acid And Alkaline Fumes

Performance Properties

Appearance	Client Requirement
Application	Brush/Cotton Roller/Spray
Pot Life @25 °C, Minutes	15-20
Theoretical Coverage @ 200 Micron, Kg./Sq.Mtr.	0.3
Cure Method	Self-Curing
Curing Time, @ 30 °C • Touch Dry, hours	1-2
Mixed Density, Kg/L	1.25 ± 0.25
Chemical / Oil / Moisture Resistance	Excellent
Mixing Ratio (By Weight)	3(R):1(H)

Note: Thickness can be Increased up to 200-300 Micron Depending on Client Requirement.
